GARMENT TRANSPORT

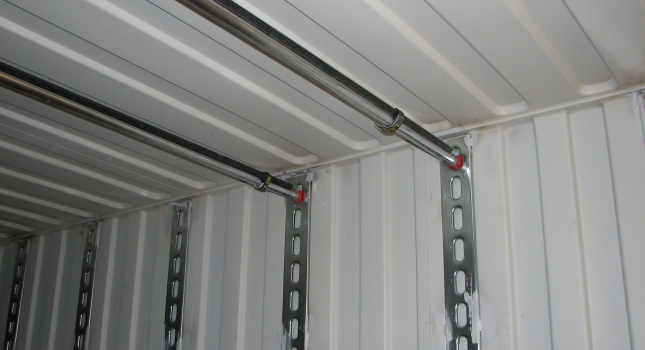

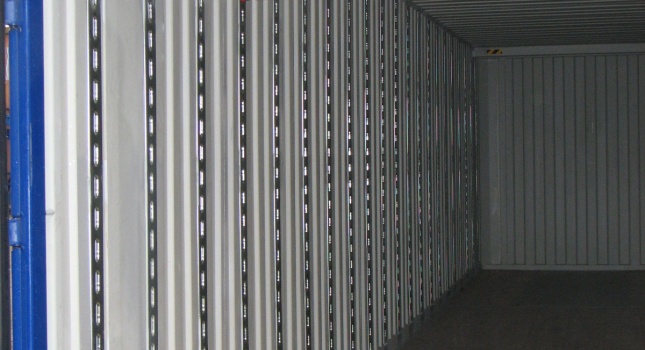

This unit is suited for transporting clothing which needs to be hanging during transportation. The bars are mounted on tracks. The amount of tracks is variable.

Specifications

External dimensions
  • Length: 13,716 mm
  • Width: 2,500 mm
  • Height: 2,896 mm
Internal dimensions
  • Length: 13,556 mm
  • Width: 2,438 mm
  • Height: 2,695 mm
Capacity
  • Cubic capacity: 89
  • Euro pallet: 33
  • ISO pallet: 26
Weight
  • Gross weight: 34,000 kgs
  • Tarra weight: 4,320 kgs
  • Max Payload: 29,680 kgs
weight and payload depending on number of tracks and clothingbars.
